In the entire process of eyewear making, edging is a key process that determines whether the lens can be accurately embedded in the frame. Behind this process, there is an important consumable – lens blocking pads. It is mainly used to fix lenses during eyewear processing.
The lens blocking pads is a double-sided, adhesive elastic gasket that is attached to the lens convex surface before the lens is edging, and the other end is connected to the suction cup or blocking block of the edging machine, thus holding the lens firmly on the processing equipment. During the high-speed rotation and polishing of the edging machine, the lens will be subjected to cutting forces and friction from multiple directions, and if there is no reliable fixation, the lens is very prone to displacement, shaft running and even edge chipping.
Main features:
1. Prevent lens spinning: The lens blocking pads securely fits the lenses to the suction cup through a double-sided high-viscosity adhesive layer, ensuring that the lenses do not slip or shift during high-speed polishing. Premium blocking pads provide industry-leading anti-slip properties to keep the lenses stable during processing.
2. Improved processing accuracy: When processing lenses with astigmatism axis positions or progressive multifocal positions, the blocking pad can be used in conjunction with the center positioner to accurately mark the optical center position of the lens, controlling the positioning error within ±0.1mm, and avoiding power errors caused by human visual bias.
3. Protect the lens surface: The foam core layer of the blocking pad has a certain degree of cushioning and compliance, which can fit the lens surface with different curvatures, avoiding scratches or indentations caused by the suction cup directly touching the lens during processing. At the same time, it also protects the front surface of the lens during machining and prevents damage to the lens caused by grinding debris.
4. Adapt to a variety of lens materials and coatings: With the continuous abundance of lens materials (CR-39, polycarbonate, high refractive index resin, etc.) and the wide application of advanced coatings such as anti-reflection and superhydrophobic, ordinary adhesive materials have become difficult to adhere reliably. In this case, a blocking pad with a special adhesive can be used to ensure a strong bond between the various lens materials and coatings.

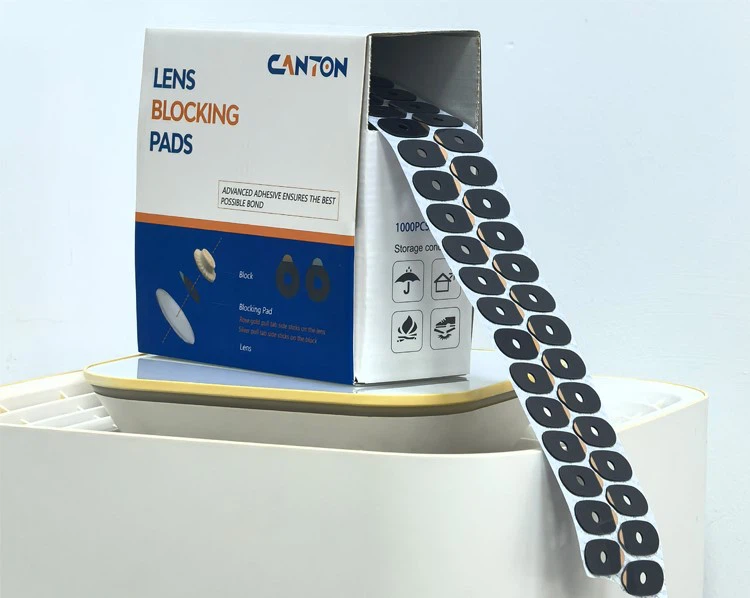

CT8820-1951
Basic lens blocking pads, using PE material, conventional foaming process, basic adhesion performance, suitable for conventional lens processing, no residual glue, no damage to the lens surface.

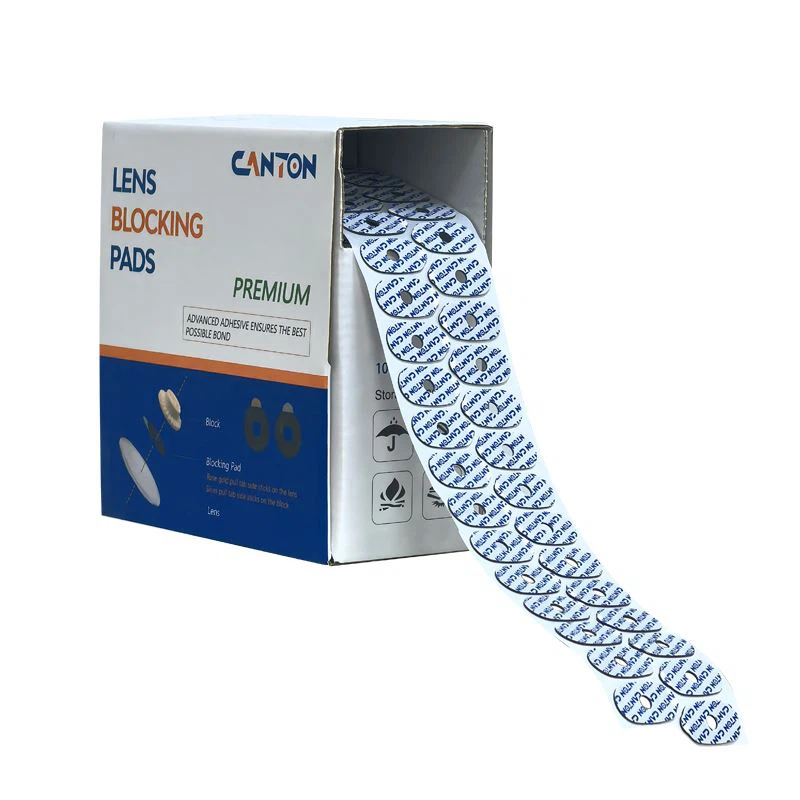

CT8820-1969
High-end lens blocking pads, using PE material, special foaming process, good glue, long-lasting durability, high viscosity, suitable for conventional lenses, high-end lenses and ultra-waterproof film lenses.

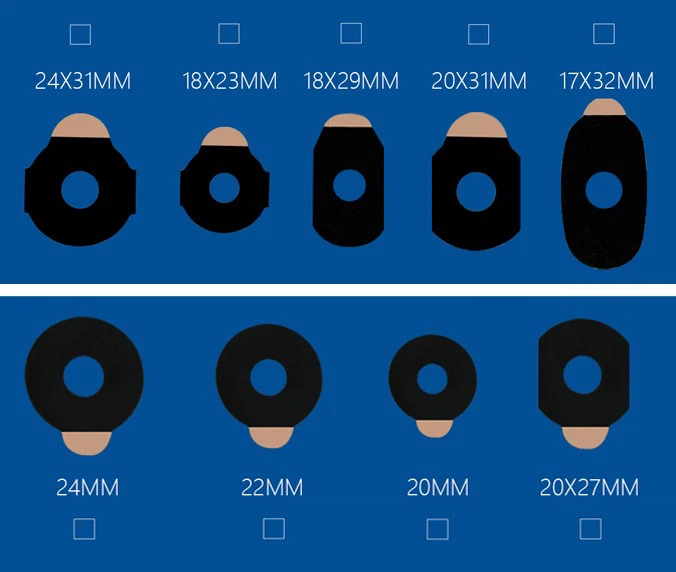

The above two lens blocking pads are available in a variety of shapes and sizes, which can widely meet different brands and models of edging machines on the market.
